1-1/2" diameter extension column or 1/2" thread rod. Mount includes pre-assembled adapter plates to shorten installation time. It is offered in small, medium, or large universal clamp size.
|
|
|
|
|
|
|
|
|
|
|
|
-
Types: Drop from ceiling
-
Designs: Universal mount
-

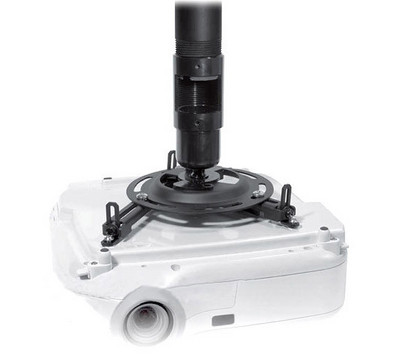

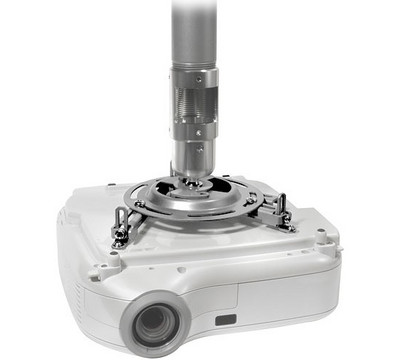

Finish: Black, Silver
-
Maximum Capacities: 50.00 lbs
-
Mounting Length: With NPT Extension Column: 5.50 in
With Ceiling Plate: 3.00 in
-
Rotation Adjustments: 360 Deg
-
Tilt Adjustments: 30 Deg
-
Pitch Adjustment: 30 Deg (±15 Deg)
-
Adjustable Extension: 1.12 - 2.14 in
-
Depth: 5.50 in
-
Weight: 2.9 lbs
-
Size: With Extension Column Connector: 1.50 x 5.50 x 1.50 in
With Ceiling Plate: 1.50 x 3.00 x 1.50 in
-
Package Length: 12.75 in
-
Package Width: 9.5 in
-
Package Height: 2.5 in
-
Package Weight: 3.4 lbs
-

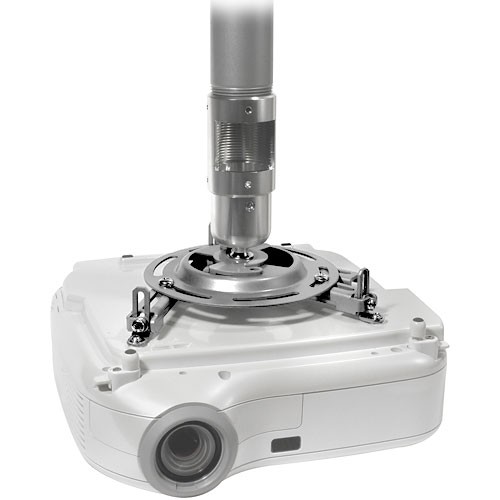

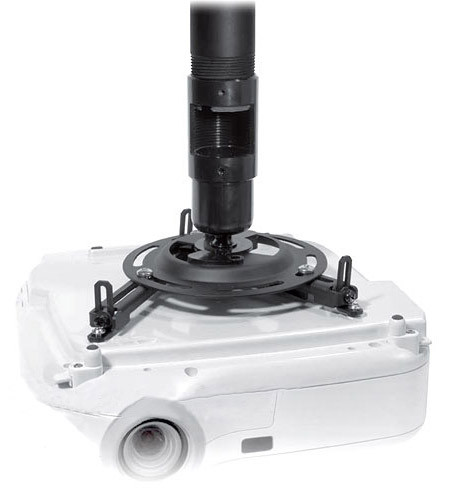

Shown with Optional: Projector
-
Construction: Aluminum housing, nylon connector with aluminum ball joint and steel adapter plate
-
Roll Adjustment: 30 Deg (±15 Deg)
Product Overview & Specs
1-1/2" diameter extension column or 1/2" thread rod. Mount includes pre-assembled adapter plates to shorten installation time. It is offered in small, medium, or large universal clamp size.
- 1-1/2" Cord access hole for a clean appearance
- Clean look with its new cable management capabilities
- Column connector incorporates internal cord management paths
- Ceiling plate, ball and socket design, multidirectional positioning
- Complete armor lock security at every connection point
- Perfect for use in classrooms, boardrooms, hotels, bars and restaurants
- Designed to route cords internally through the extension column
- Mounted using 1/2" thread rod or wall mounted
- Include pre-assembled adapter plates to shorten installation time
- Choose from 2 different finishes
|
|
|
